Code ID: SCM-01
Product Description

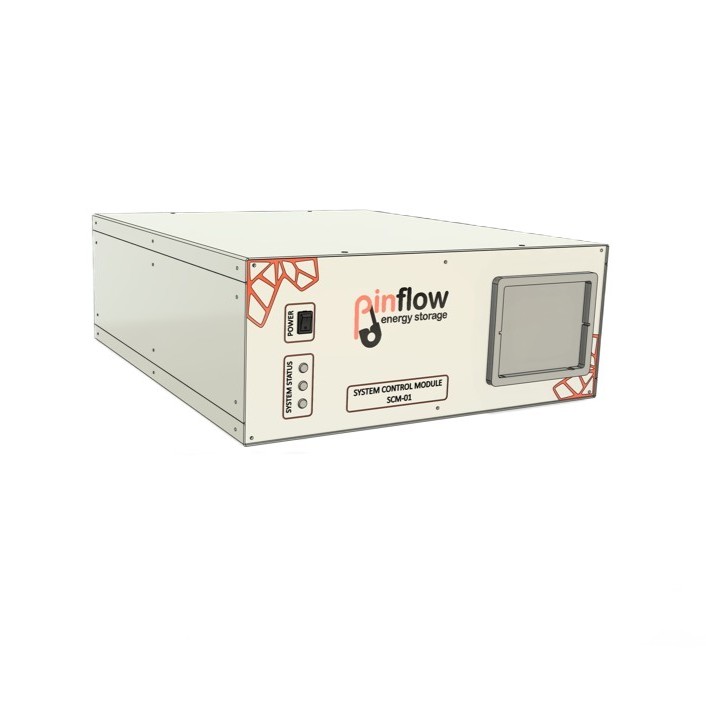

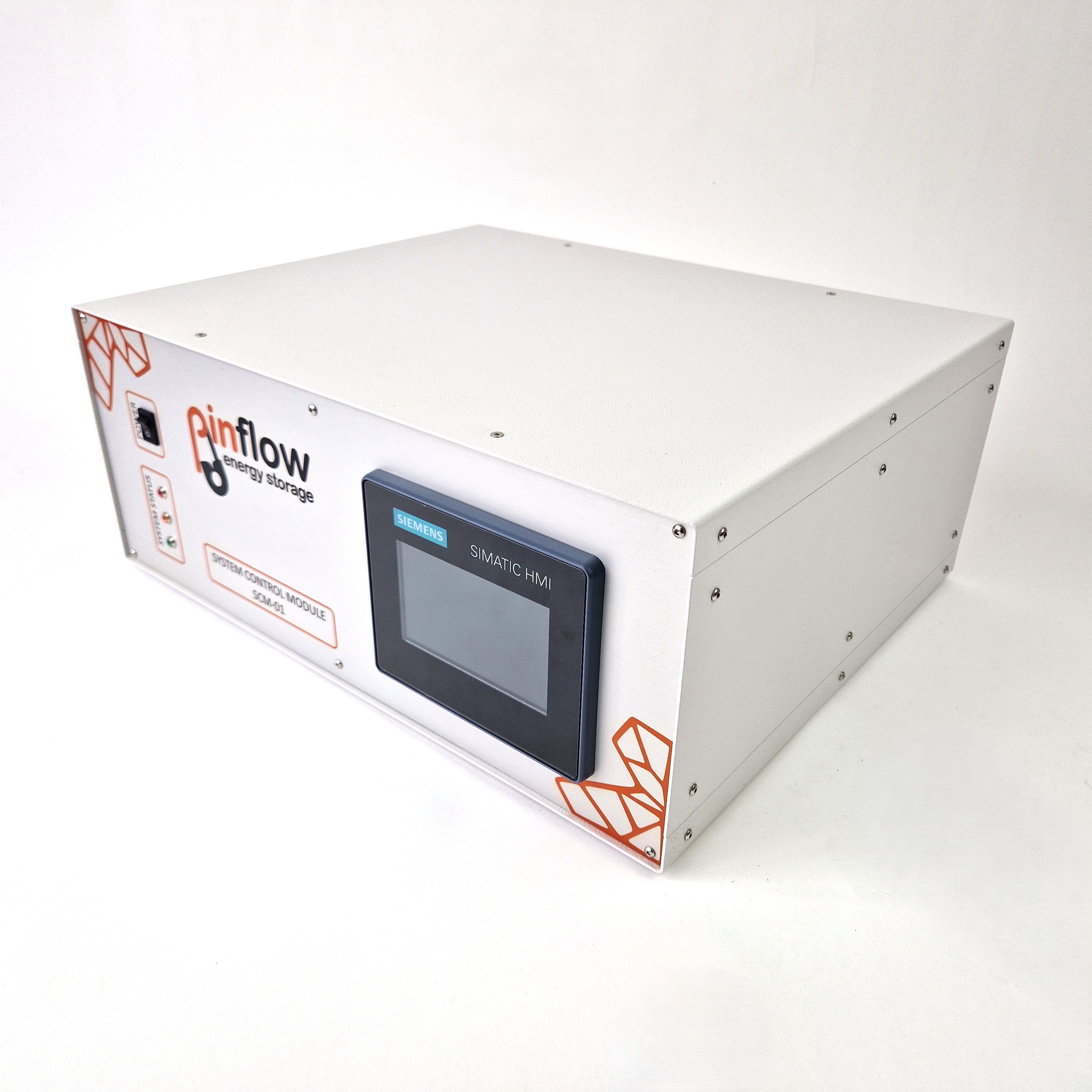

System Control Module 01 (SCM-01) is designed for system control of small electrochemical laboratory...
Read more| Dimensions / mm | 177 (h) × 360 (d) × 443 (w) |
| Weight / kg | 12,750 |
| Power Consumption / W | 1000 |
| Operating temperature / °C | 0 - 50 |
| Storage temperature / °C | 0 - 60 |

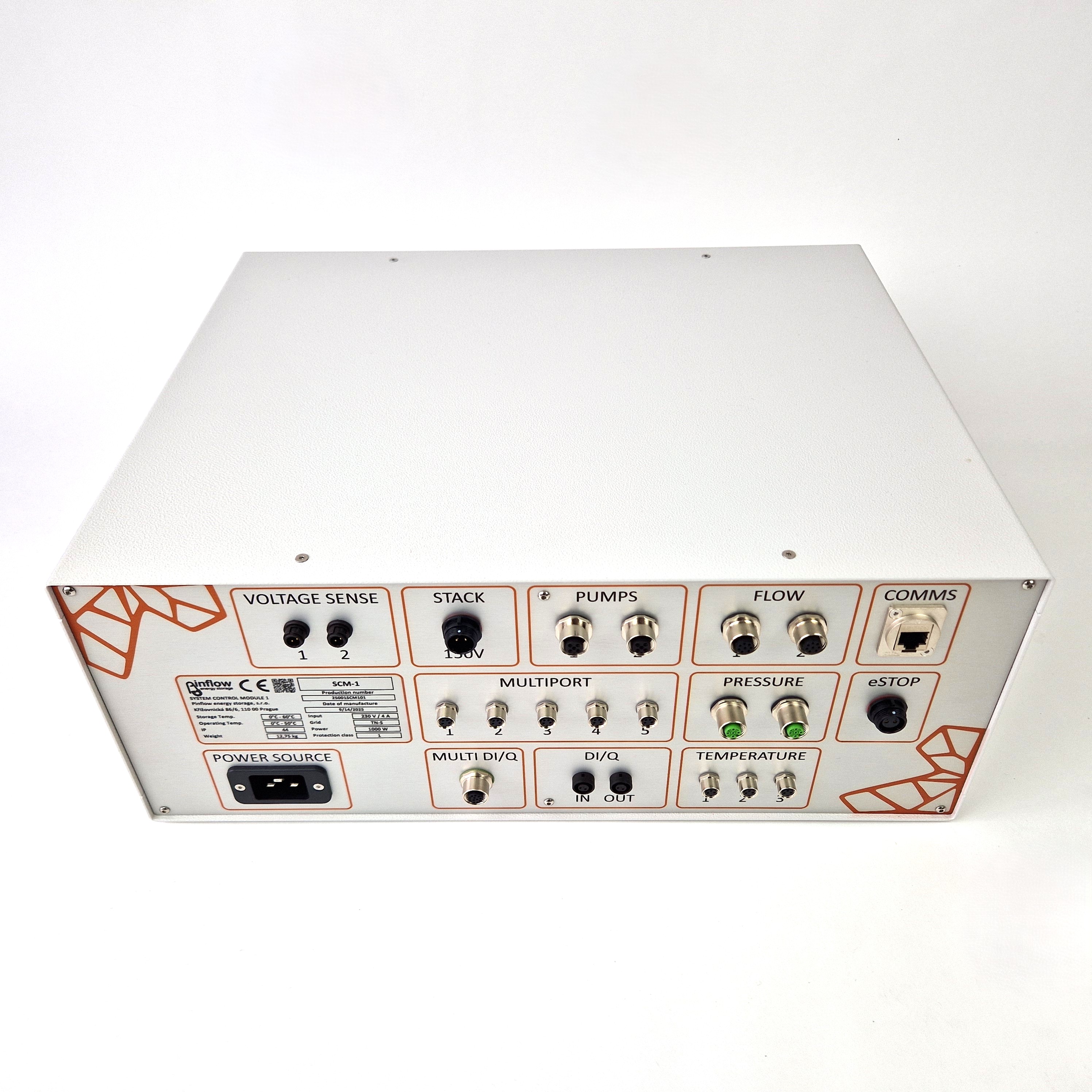

| Voltage differential channel | 1x with range of 150 V DC; 2x with range of 5 V DC |
| Pumps Channel | 2x 24 V DC with maximum of 1,5 A, Analog control 0-5 V |
| Multiport channel | 24 V DC power supply; 5x Voltage differential sense with range of 5 V |
| Flow Channel | Current loop 24 V DC with range of 4-20 mA |
| Pressure Channel | Current loop 24 V DC with range of 4-20 mA |
| eSTOP | 24 V DC Emergency stop input, sink logic |
| Multi DI/Q | 3x Digital Input sink logic, 3x Digital Output source logic, 24 V DC |
| DI/Q | 1x Digital Input sink logic, 1x Digital Output source logic, 24 V DC |
| Temperature channel | 3x RTD two wire |
| Communication Ports | 1x RJ45 |
| Power supply | 230 V AC |
