Code ID: LR-1-5L
Product Description

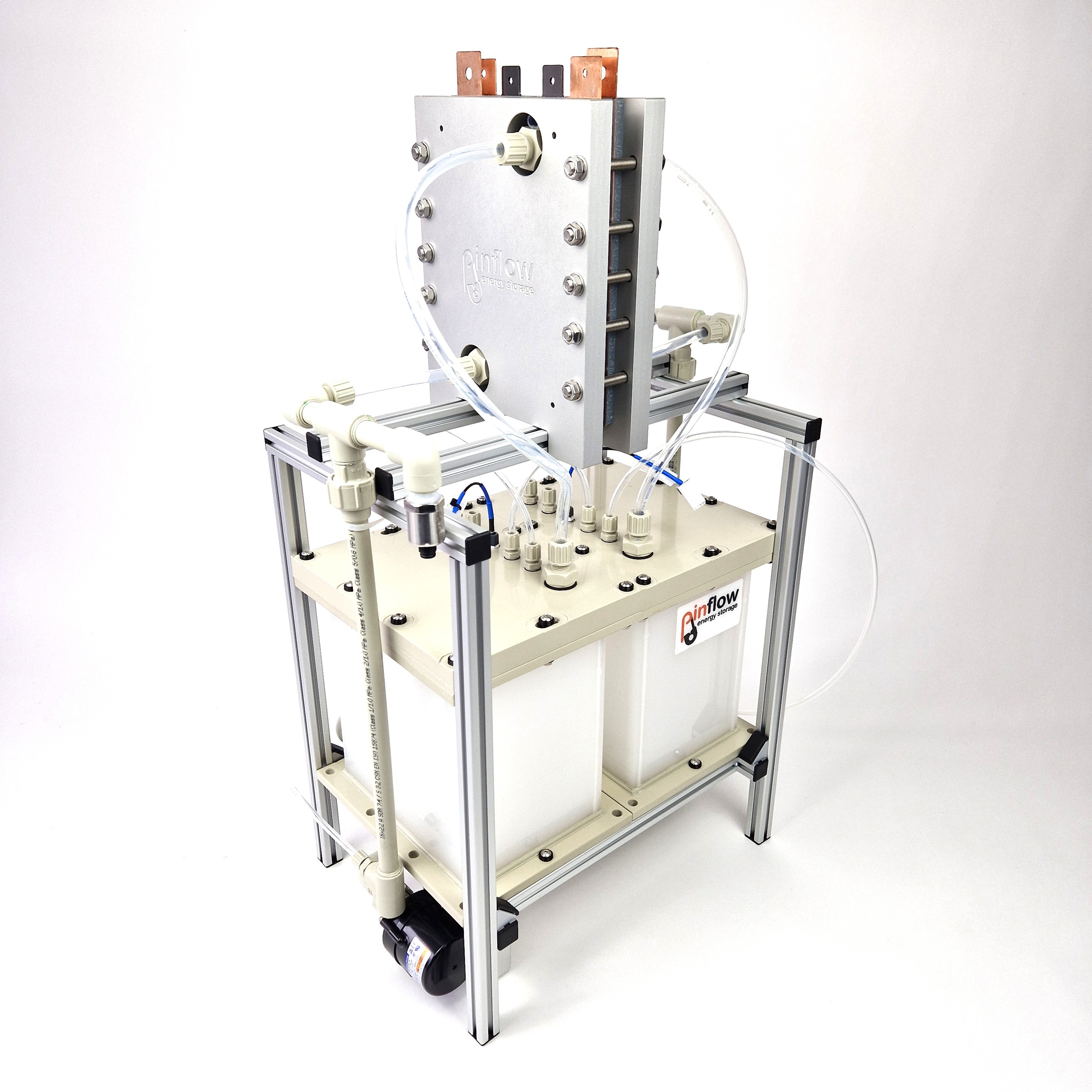

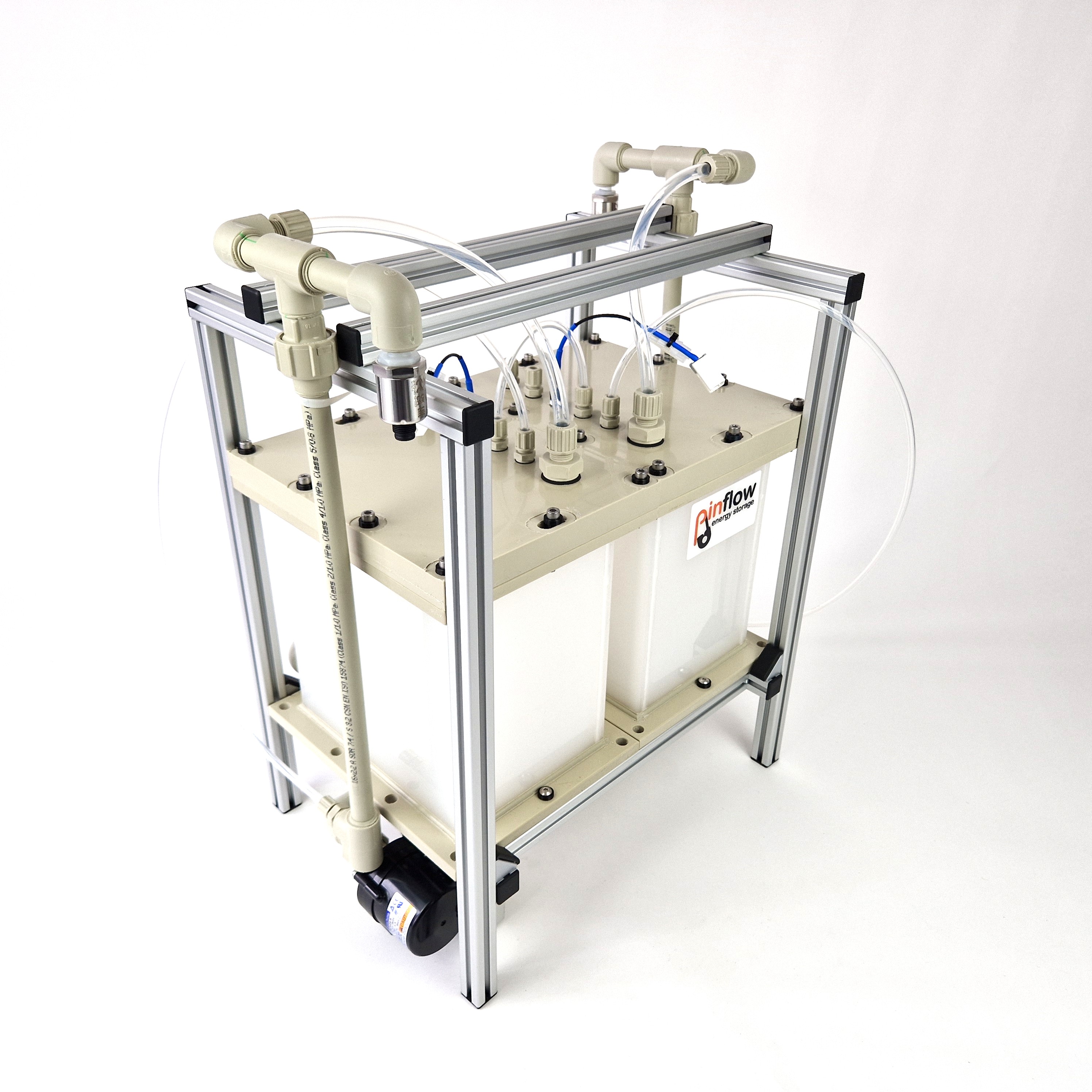

Lab-rig extension (LR-1-5L) is module tailored for testing larger cells and stacks up to 100 cm2. La...
Read more| Dimensions / mm | 500 x 350 x 460 |

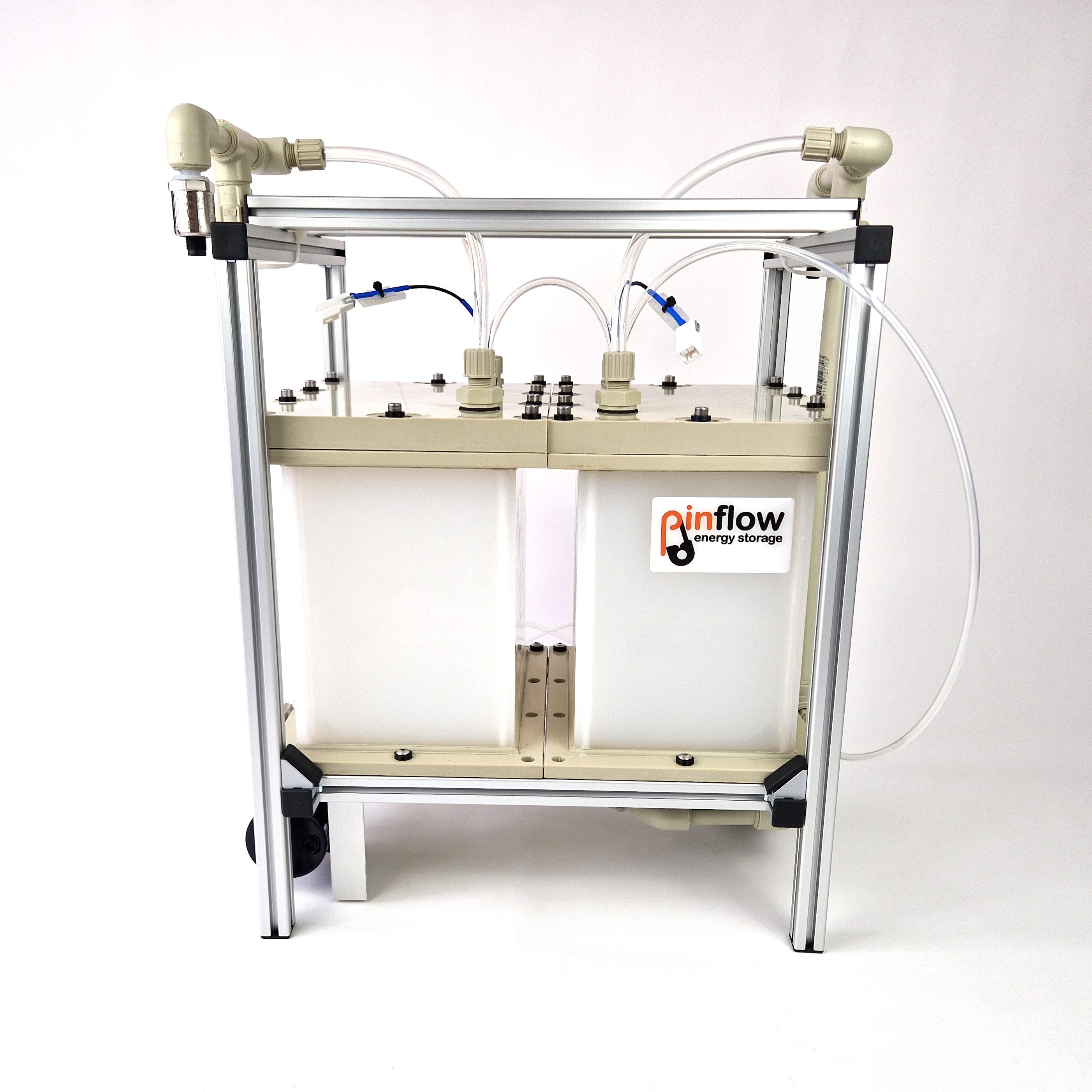

| Tanks | polypropylene (PP) airtight electrolyte tanks |

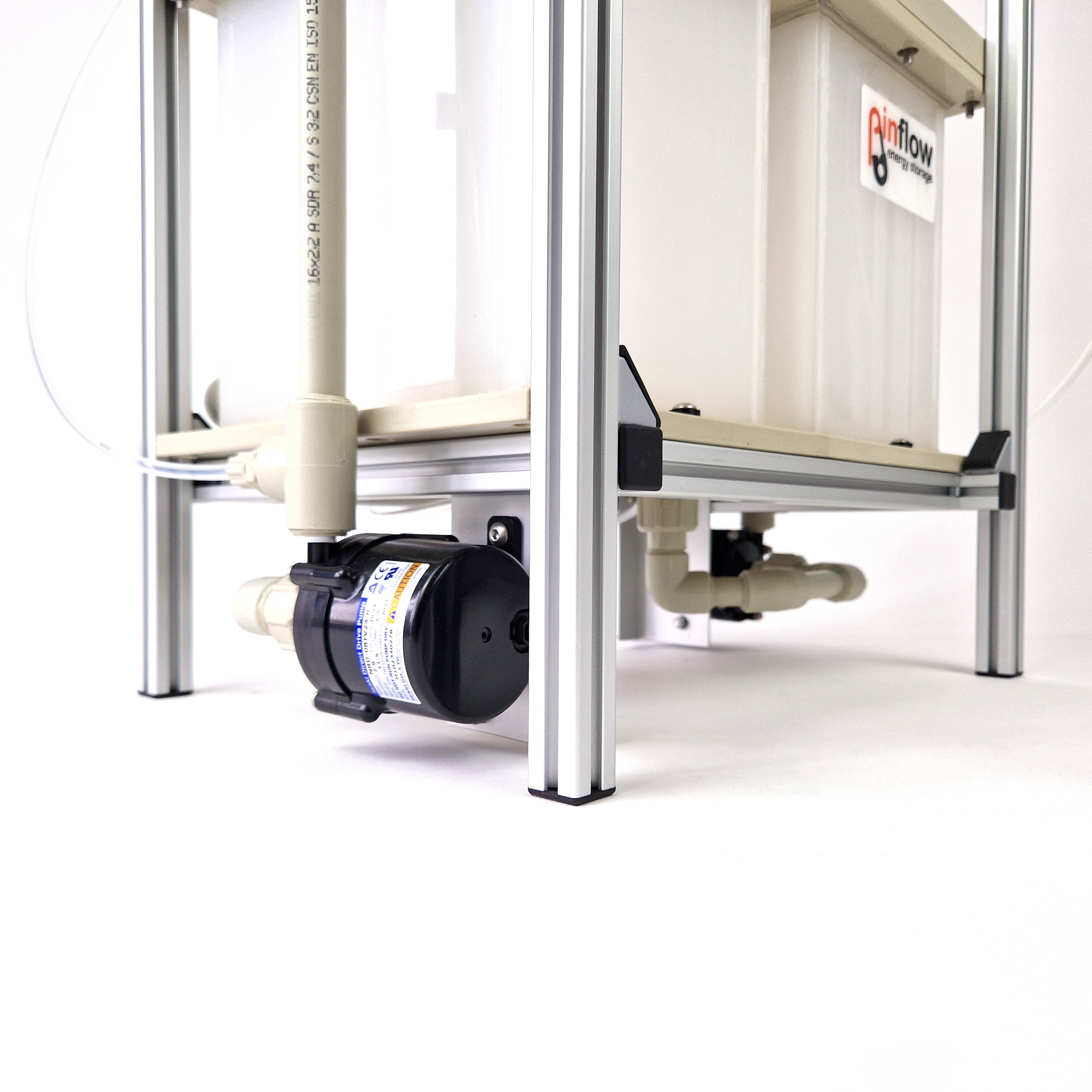

| Magnetic pumps | DC 24 V with RPM control |
| Flow rate / l/m | 7.9 |
| Tubes | 8/10 and 4/6 mm |
| Volume / L | 5 |
Query
Key Features
• 4U 19” Rack dimensions of SCM-01.
• Tailored up to 10 cell stack (LC50, LS50, LC100, LS100).
• Each vessel tailored for up to 5 L of electrolyte (nominal value).
• Control and data acquisition software included.
• Sensors and pumps included.

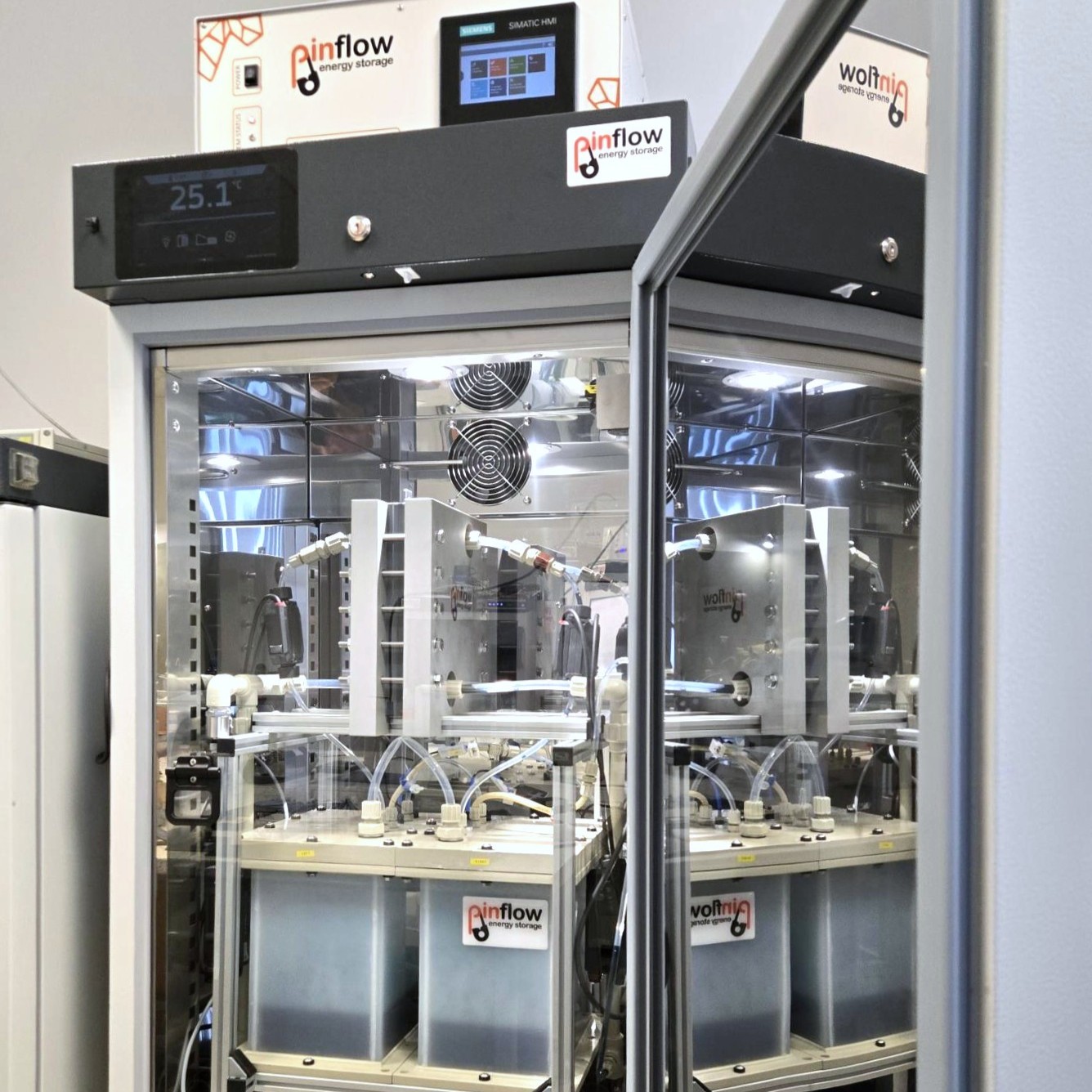

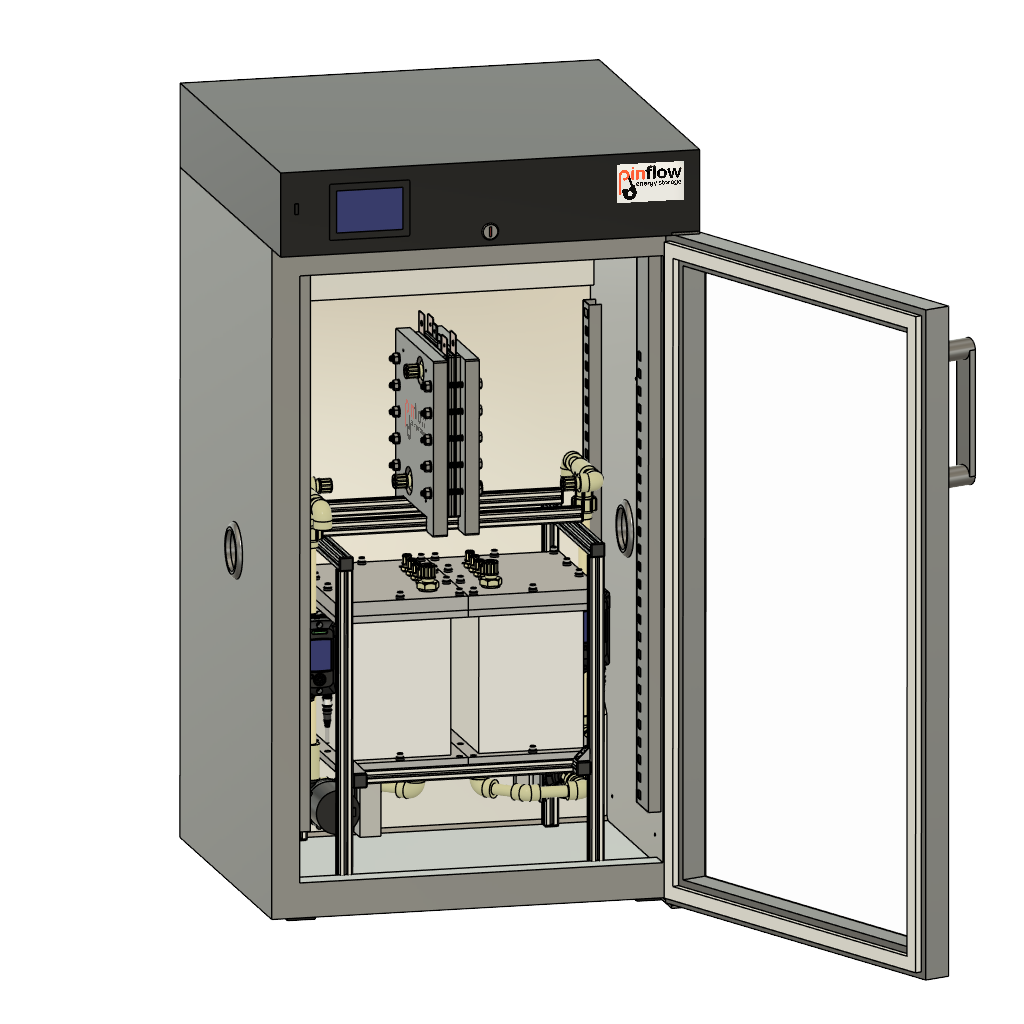

• Fits into tempered box (TB-1, TB-2, TB-X).
Sensors, electronics and software
I. Temperature sensors - Temperature sensors in tanks and ambient SS with PFA shield, RTD with Class A accuracy.
II. Pressure sensors - Two pressure sensors for monitoring circulation loop, corrosion resistant, ceramic pressure cell, PFA body, accuracy of 1% or better Pressure range: 0 - 1 Bar.
III. Flow meters - Two ultrasound flow meters, flow range 0 — 20 l/min.
IV. System control module - System control module - 01 (SCM-01) supports data acquisition and pump control for testing unit. SCM is equipped with HMI display to show actual measured data. This module features an LAN communication interface with defined communication protocol (Modbus TCP]. Analog data acquisition module supports standard 2- wire and 3-wire sensor inputs in addition to standard 4-wire sensor inputs. The SCM operates at the 230 V supply voltage (EU standard) and 0 °C to 50 °C temperature range. This SCM is ideal for rapid implementation to research systems where data acquisition is necessary. The module is compatible with Pinflow energy storage,s.r.o. software
Analog inputs
1 input: Voltage -150 to +150 V DC, for stack monitoring
2 inputs: Voltage -5 to +5 V DC, for OCV/OCP monitoring
2 inputs: Current loop 24 V, 4-20 mA, for flow monitoring
2 inputs: Current loop 24 V, 4-20 mA, for pressure monitoring
3 inputs: RTD, PT100, for temperature monitoring
5 inputs: Multiport, including 24 V power source and -5 to +5 V sense
Analog outputs:
2 outputs: Voltage 0 to +5 V DC, used for pumps control
Digital inputs:
1 input: Safety stop, NC
1 input: DI 24 V, programmable
1 multi DI/Q: 3 inputs DI 24 V, programmable, max 100 mA each
Digital outputs:
1 output: DI 24 V, programmable
1 multi DI/Q: 3 outputs DI 24 V, programmable, max 100 mA each
230V AC (50 Hz) power supply voltage
Power consumption: Rated value 1000 W @230V AC
0°C to 50°C operating temperature range
0°C to 60°C storage temperature range
20% to 90% non-condensing operating humidity range
