Code ID: LR-1
Product Description

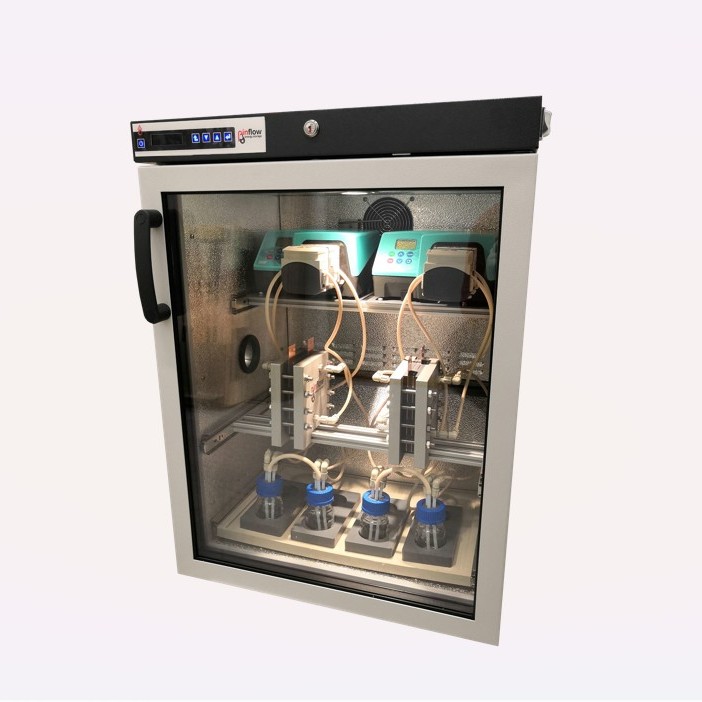

The Pinflow Lab-scale test rig for RFB is a standard test equipment for testing of redox flow batter...
Read more| Positions for lab cells in the tempered box | 2 |
| Constant temperature / °C | 3 – 70 |
| Flow rate / cm3 min-1 | 400 |
| Outer dimensions / mm | 600 x 580 x 830 |
Query
Features
• The Pinflow Lab-scale test rig for RFB enables long-term testing of up to two flow batteries.
• Compatible with the Pinflow Lab-cell.
• Peristaltic pump allows to set up the flow rate up to 400 cm3 min-1.
• Special version available on request for other flow cells if needed.
• The construction of the Laboratory test rig allows to test at constant temperature
• There are dozens of available components and sensors for data acquisition.
• Extension for the second flow cell on request.
Package contains:
A. Paper box with components containing (when ordered with two cells then two boxes are included):
a. Electric cable for tempered box connection (EU or GB plug).
b. Tubes for the connection of one flow cell made of Marprene™ (Watson Marlow Limited),
including lids with o-rings and fittings.
c. Two plastic flask holding inserts.
d. Beaker (option).
e. Two flasks 100 ml (or other volume on demand).
B. Peristaltic pump with two (optionally four) heads for Marprene™ tubes.
(Option: two pumps with two heads each).
C. Tempered box with pump holder, cells holder and anti-leak containment.
D. One or two lab-cells (option).
E. Lab cell assembling stand (option).
F. Tool for felt electrode cutting (option).
