Data acquisition module 1
Code ID: DAM-1
Product Description

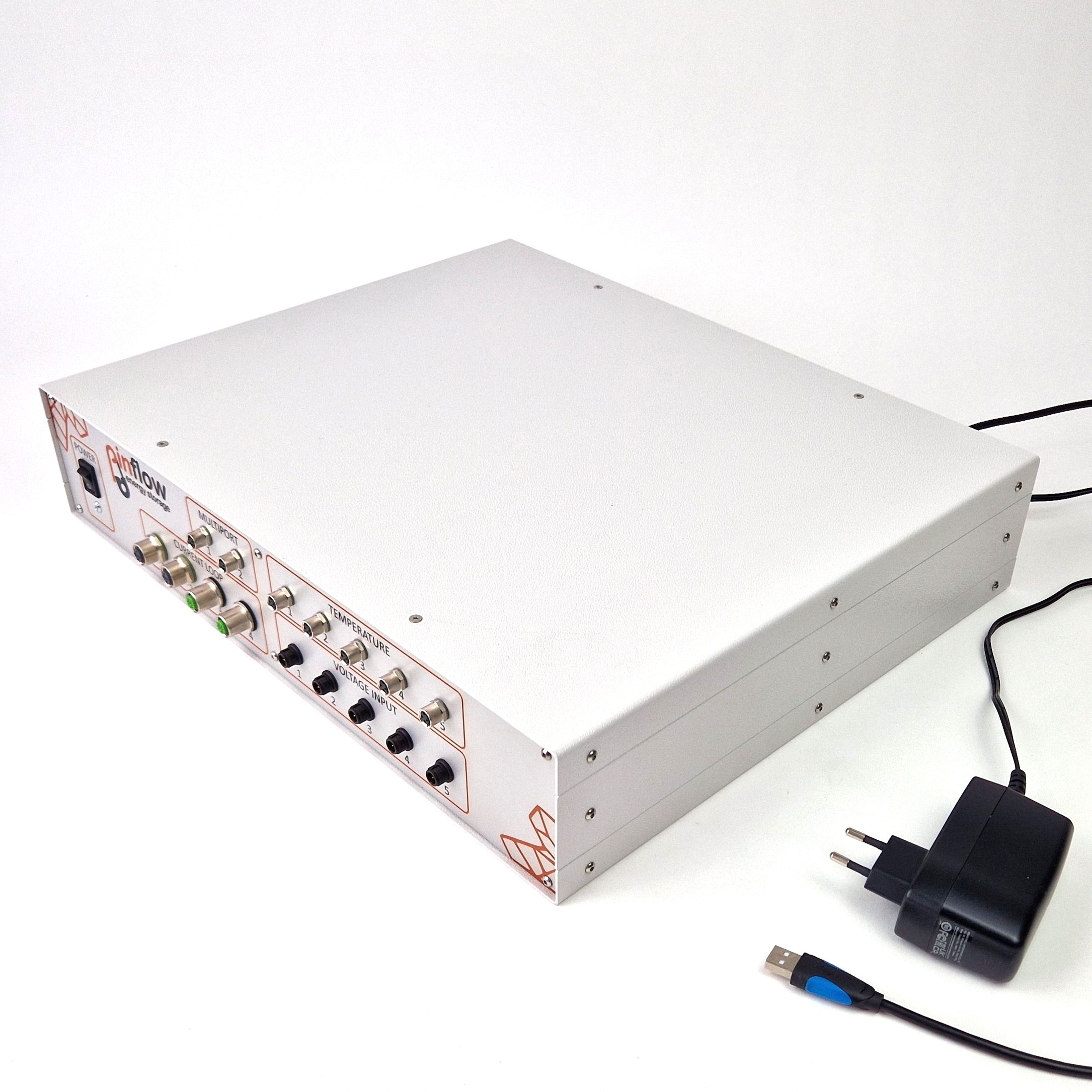

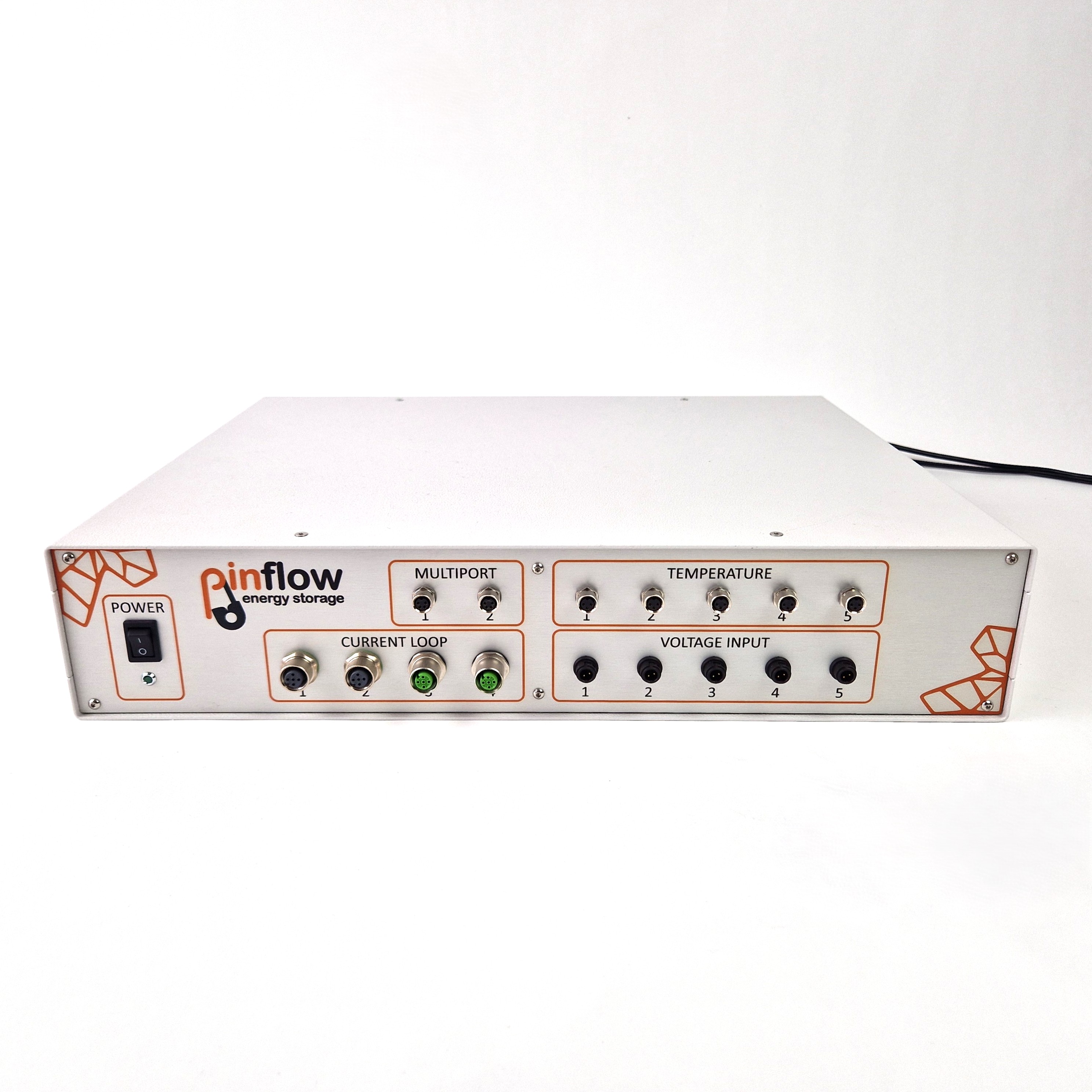

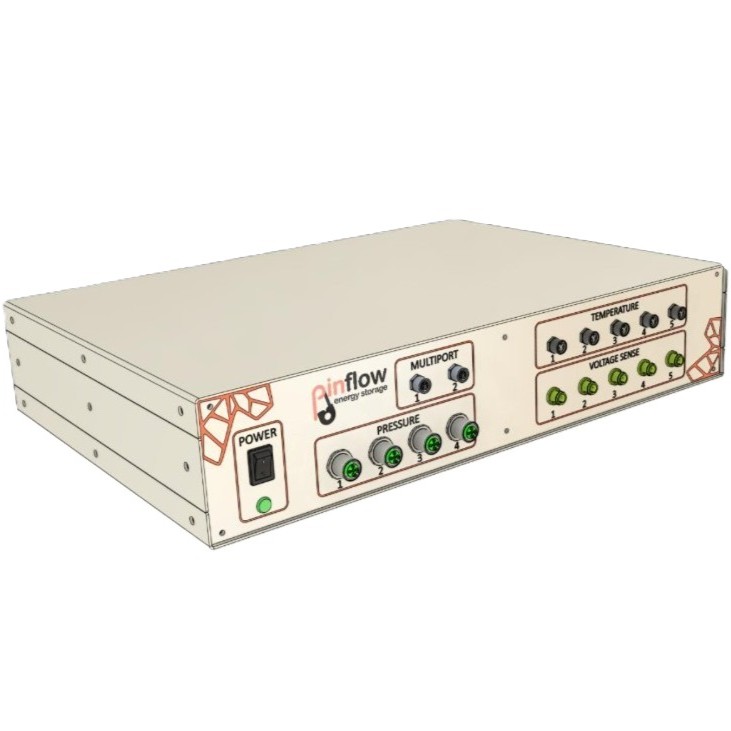

Data acquisition module with four channels and 16 inputs. Inputs (per one channel): 1× current loop ...
Read more| Dimensions / mm | 88 (h) × 360 (d) × 443 (w) (2U 19” Rack dimensions) |
| Weight / kg | 8,250 |
| Power Consumptio | 48 W with 24 VDC |
| Operating temperature / °C | 0 - 50 |
| Total number of channels | 16 |
| Voltage channels | 7x with range of ±5V (2/7 included in Multiport) |
| Closed loop channels | 4x with range of 4-20 mA |
| Temperature channels | 5x RTD |

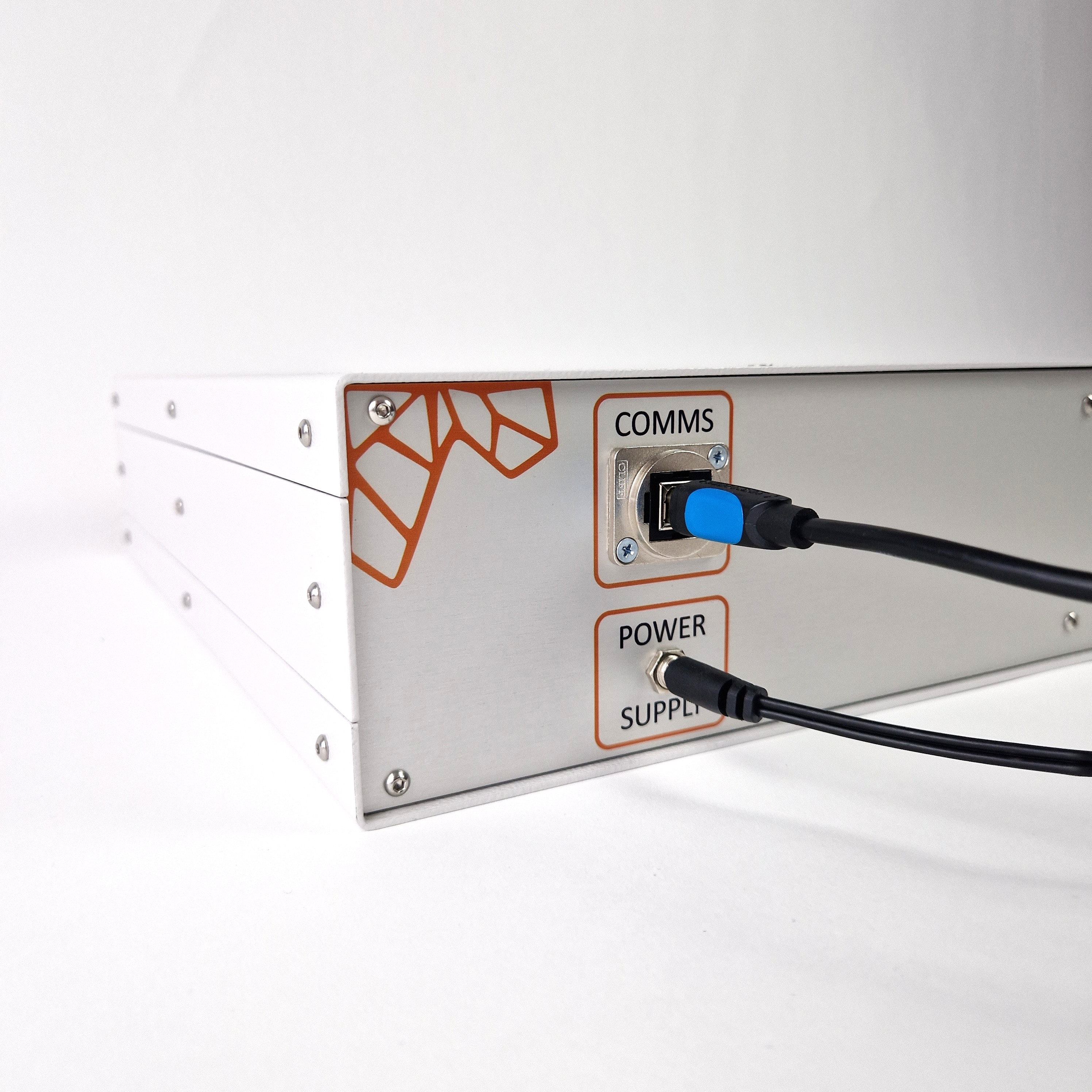

| Power supply of Multipor | 24VDC 400 mA combined |
