Code ID: LC-20
Product Description

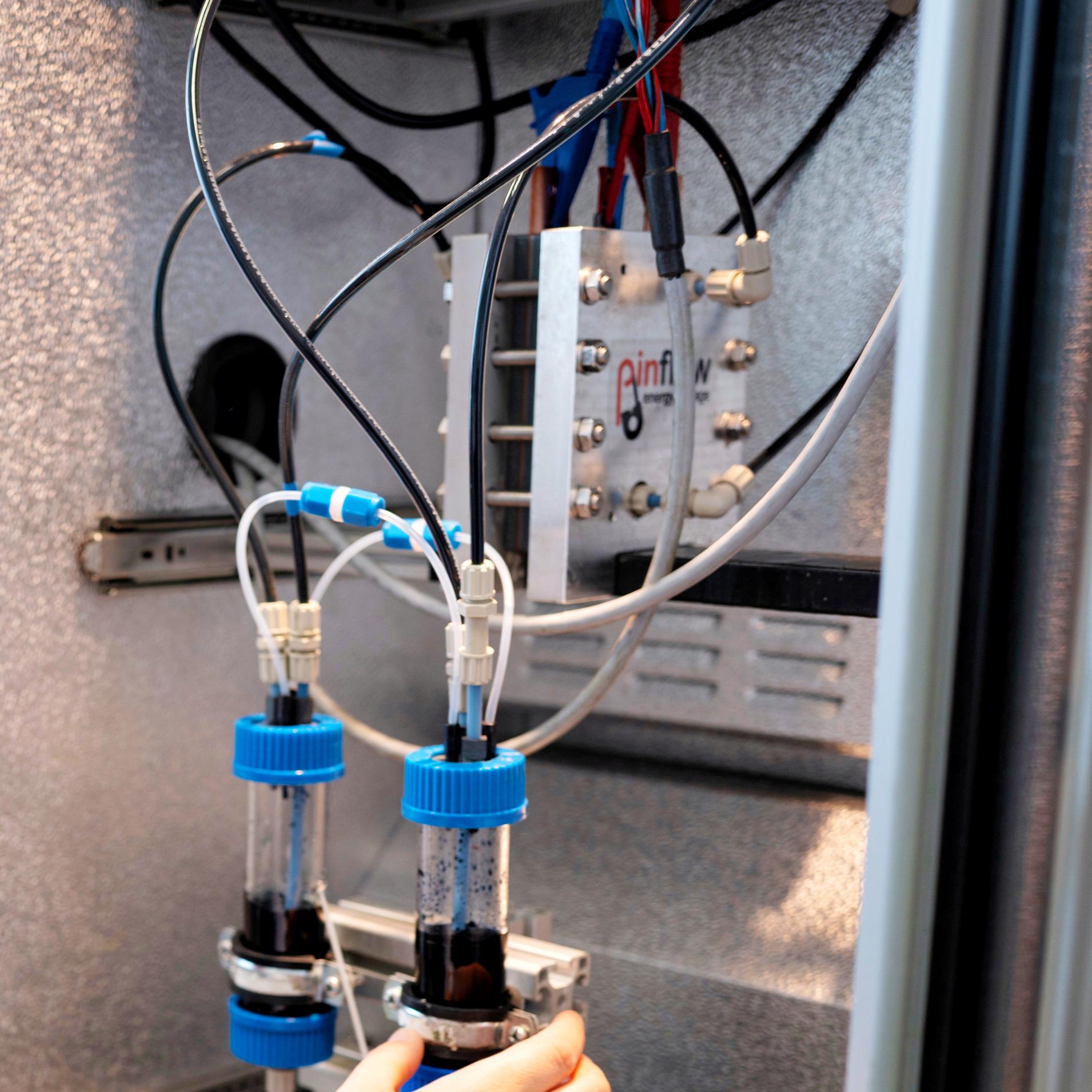

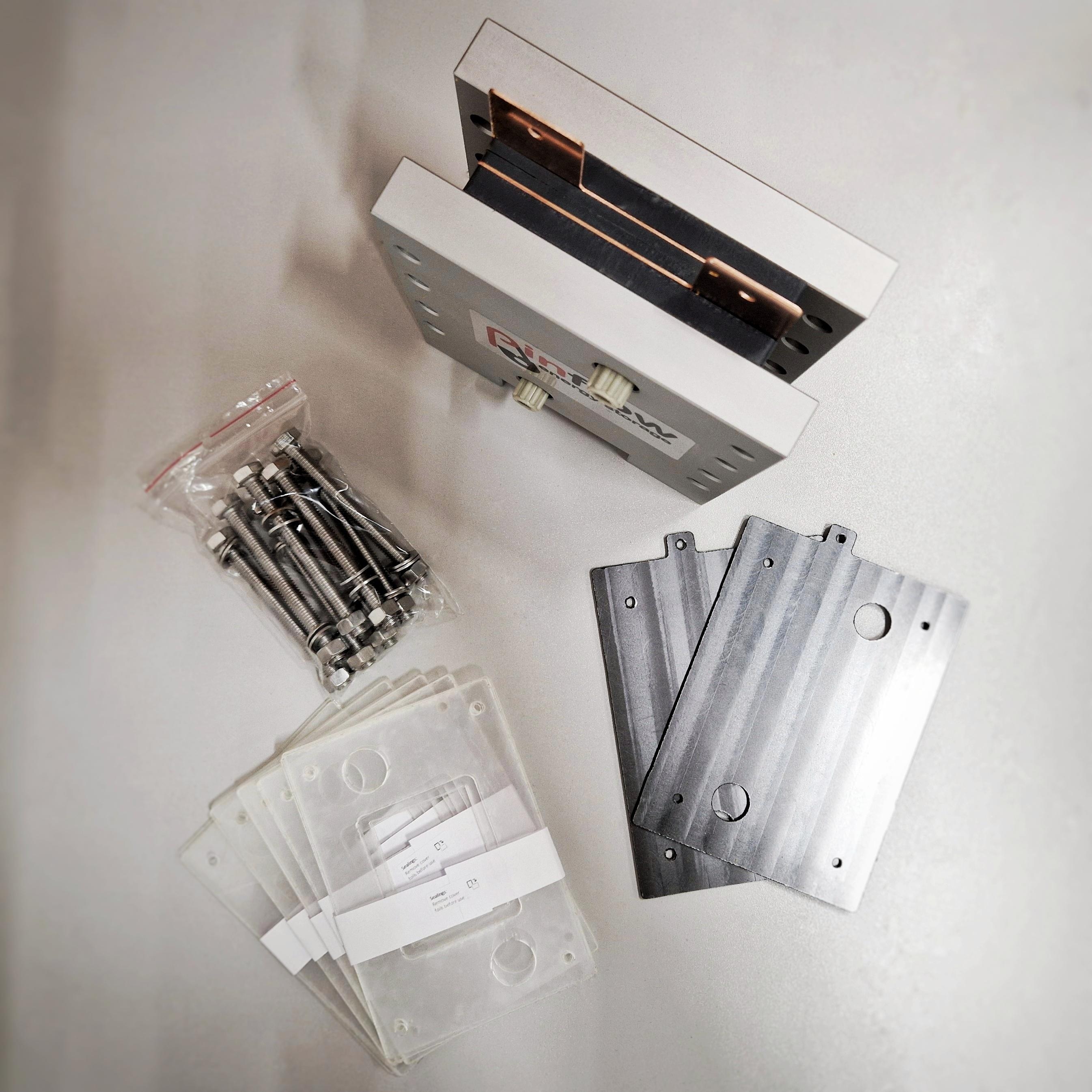

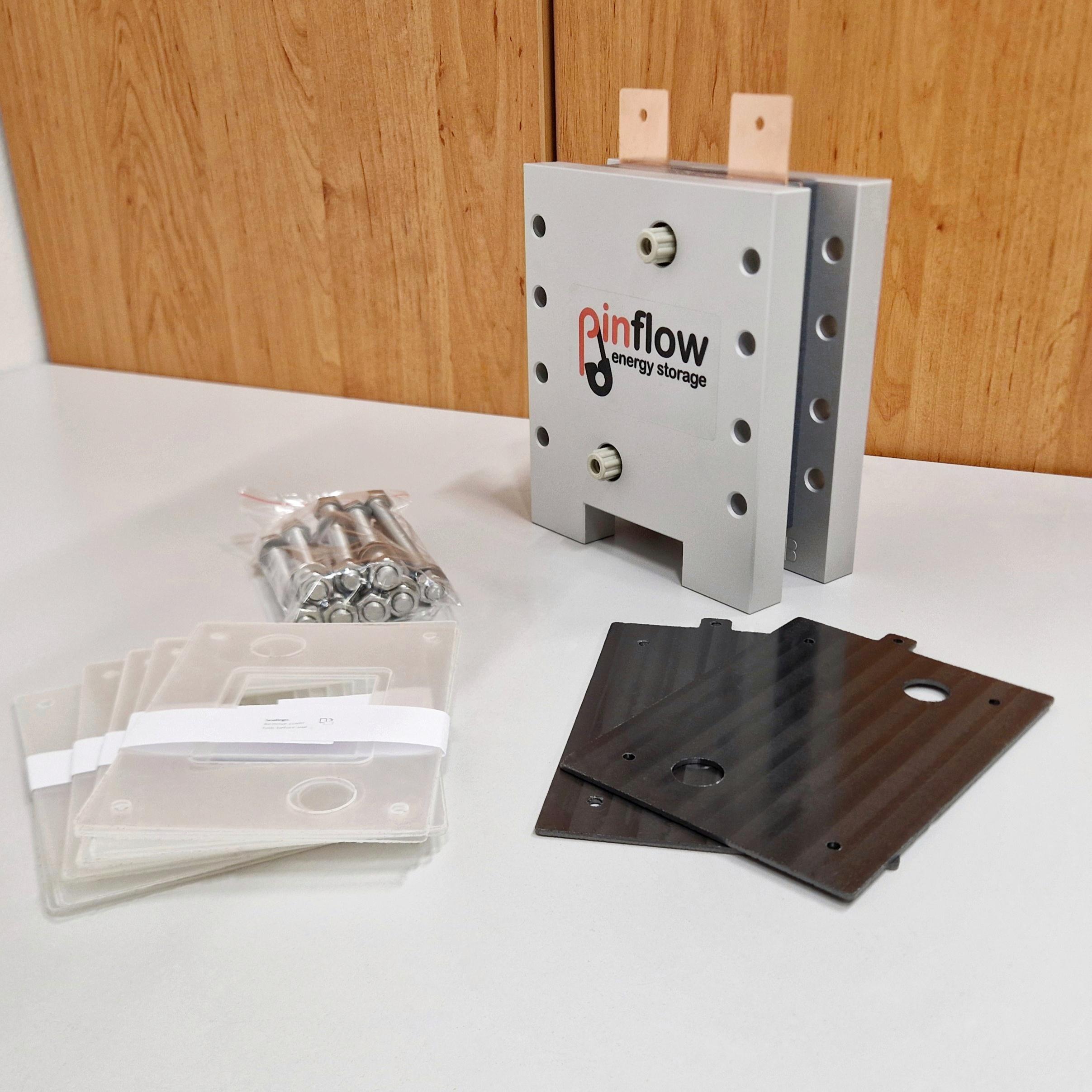

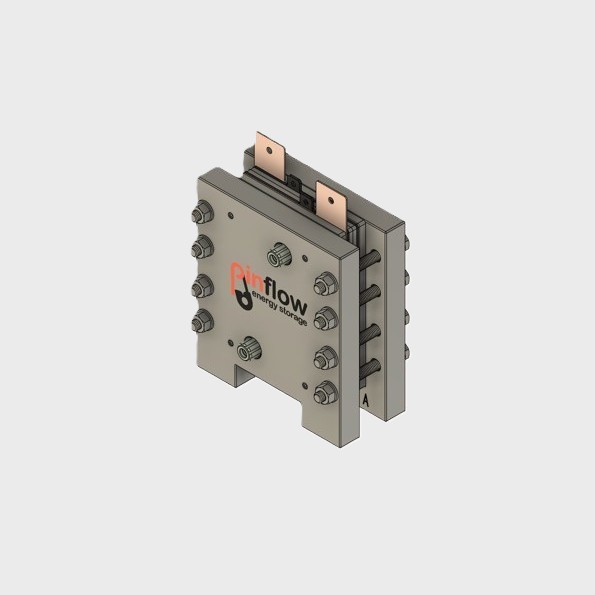

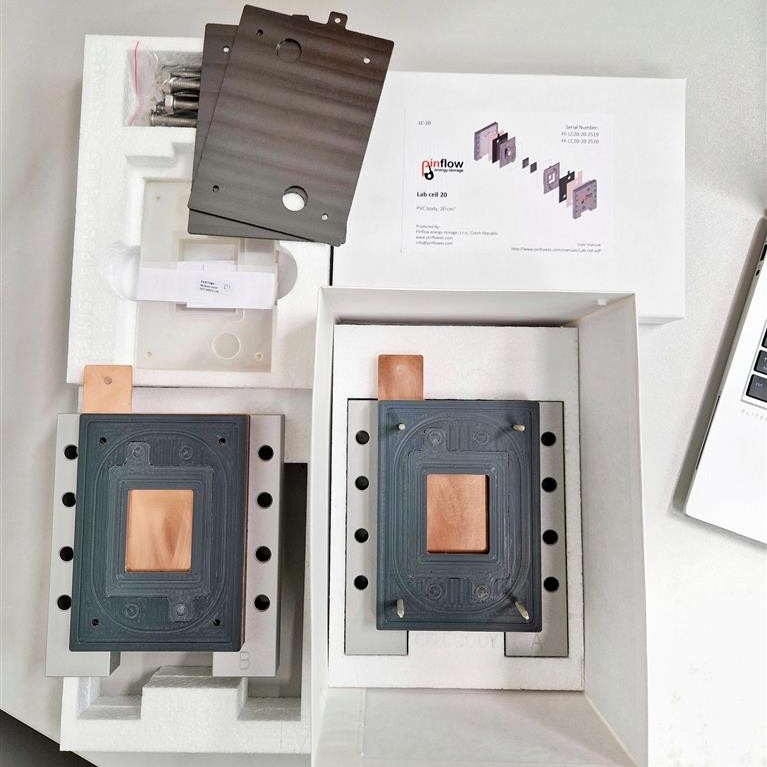

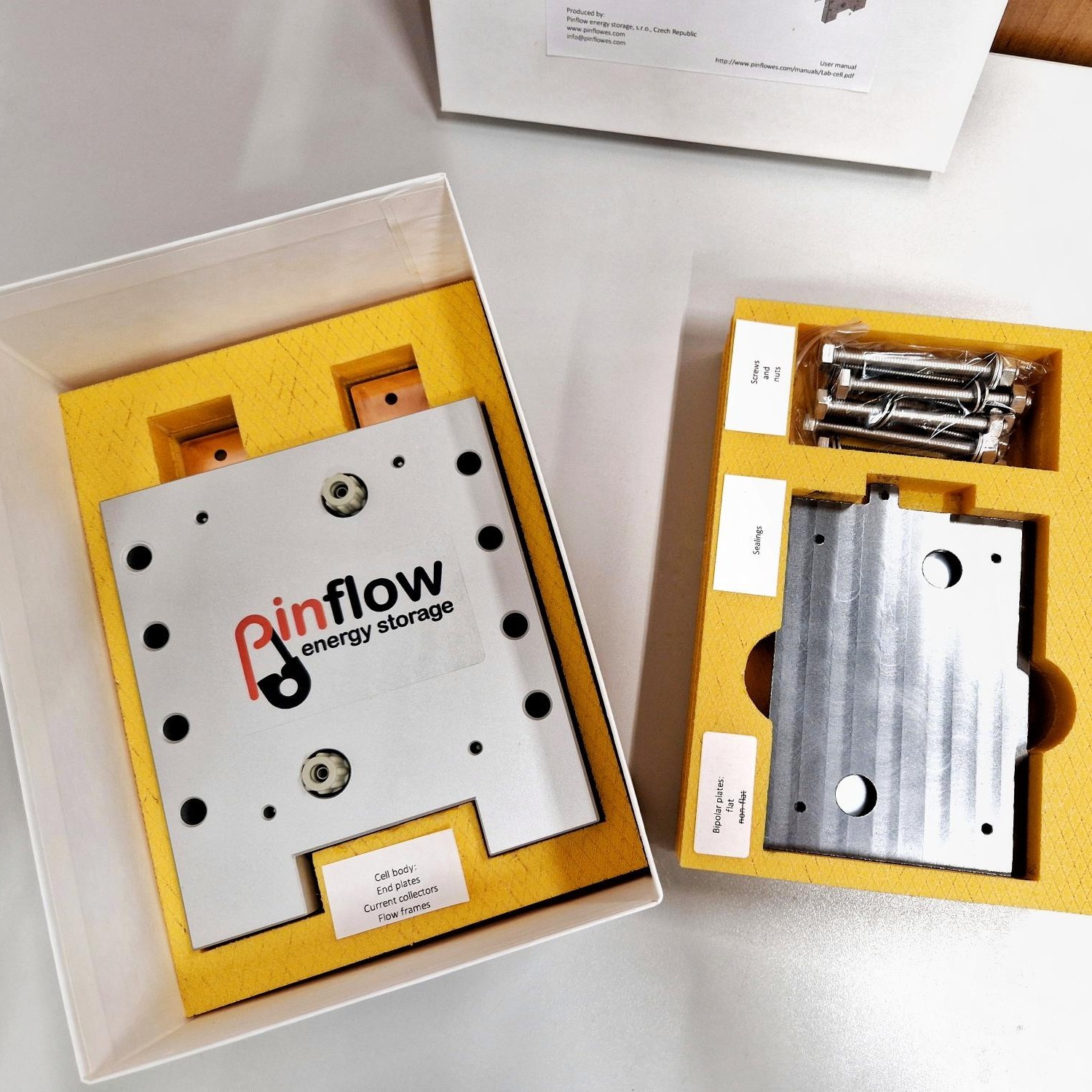

The Lab cell is a compact, modular flow electrochemical cell designed for laboratory-scale research ...
Read more| Possible Active area / cm² | |

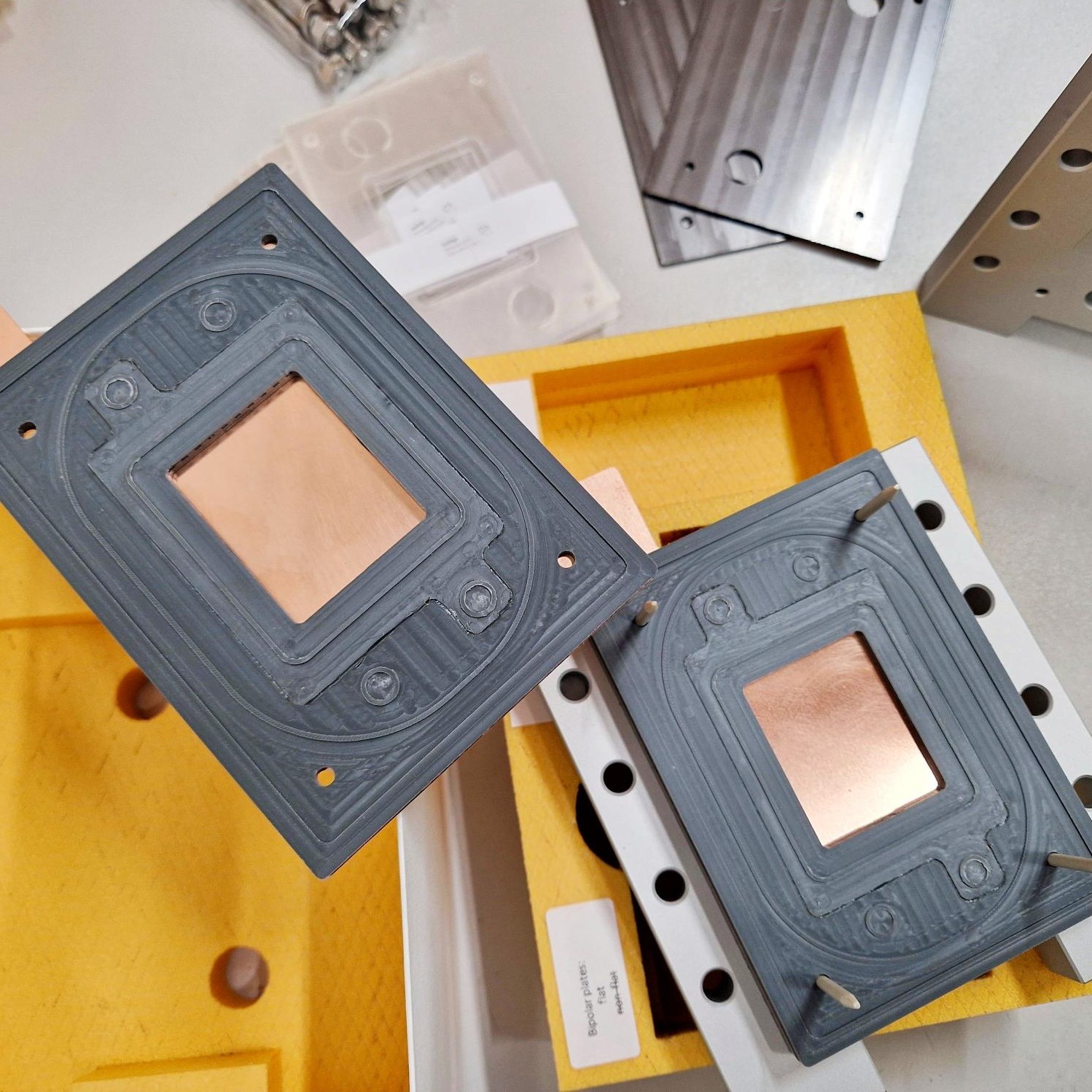

| Flow frames material | |
| Electrolyte connections / mm | i.d. 4, o.d. 6. |
| Sealings material | |
| Insulated end plates | Aluminum |
| Current collectors | |
| Bipolar plates | Flat |
| Flow frame fittings | Included |
| Outer dimensions / mm | 144 x 134 x 60 |
| Membrane | Not included |
| Felt electrodes | Not included |
Query
Features
• The Pinflow Lab-cell enables long-term stable 2-electrode testing.
• Special version available on request for other highly corrosive electrolytes and for higher temperatures.
• The construction of the cell ensures repeatable compression rate of the internal components.
• There are available components allowing to change the cell from battery to electrolysis cell or to the cell with air electrode.
